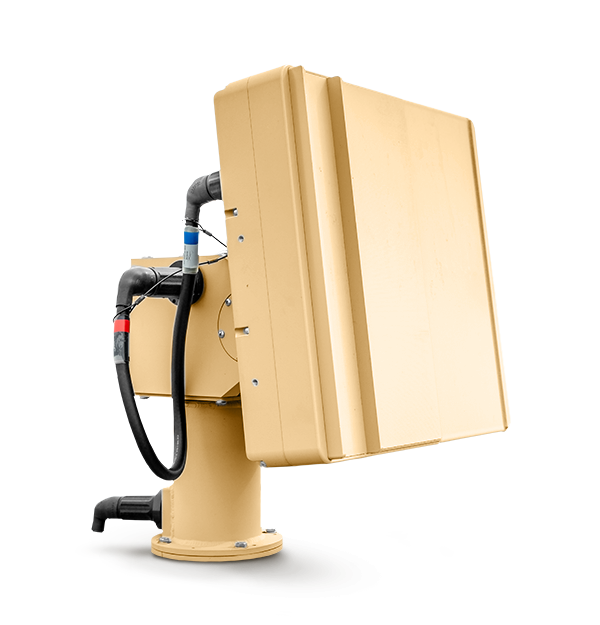

Ranger R8SS-3D

Air and Ground Drone Surveillance Panel Radar


UAS Detection Range
Micro:  1,2 km
Mini:  2,1 km
Small:  4,0 km

The man-portable FLIR Ranger® R8SS-3D has the vertical coverage, low minimum detection velocity and algorithms to detect and track up to 500 drone targets simultaneously, while filtering bird detections. The R8SS-3D can monitor the coverage area four times per second, running 24/7, detecting all ground and aerial threats in virtually any climate, day and night. Compact and lightweight, it fits in a backpack, draws only 135W, while costing much less than its vehicle-sized counterparts.

Ranger R8SS 3D - CCTV-Systems


FULL PERIMETER PROTECTION

Wide 45° beam elevation provides complete hemispherical detection of virtually every land and aerial target, including micro UAS. Pan/tilt mount provides 360° coverage.

TARGET CLASSIFICATION

R8SS-3D mitigates bird false alarms and informs the operator if the target is a person, vehicle, UAS, bird, or unknown.

INTEGRATION WITH OTHER SENSORS

The Ranger R8SS-3D reports target elevation, and automatically points cameras and countermeasures to targets.
